Aim Discs

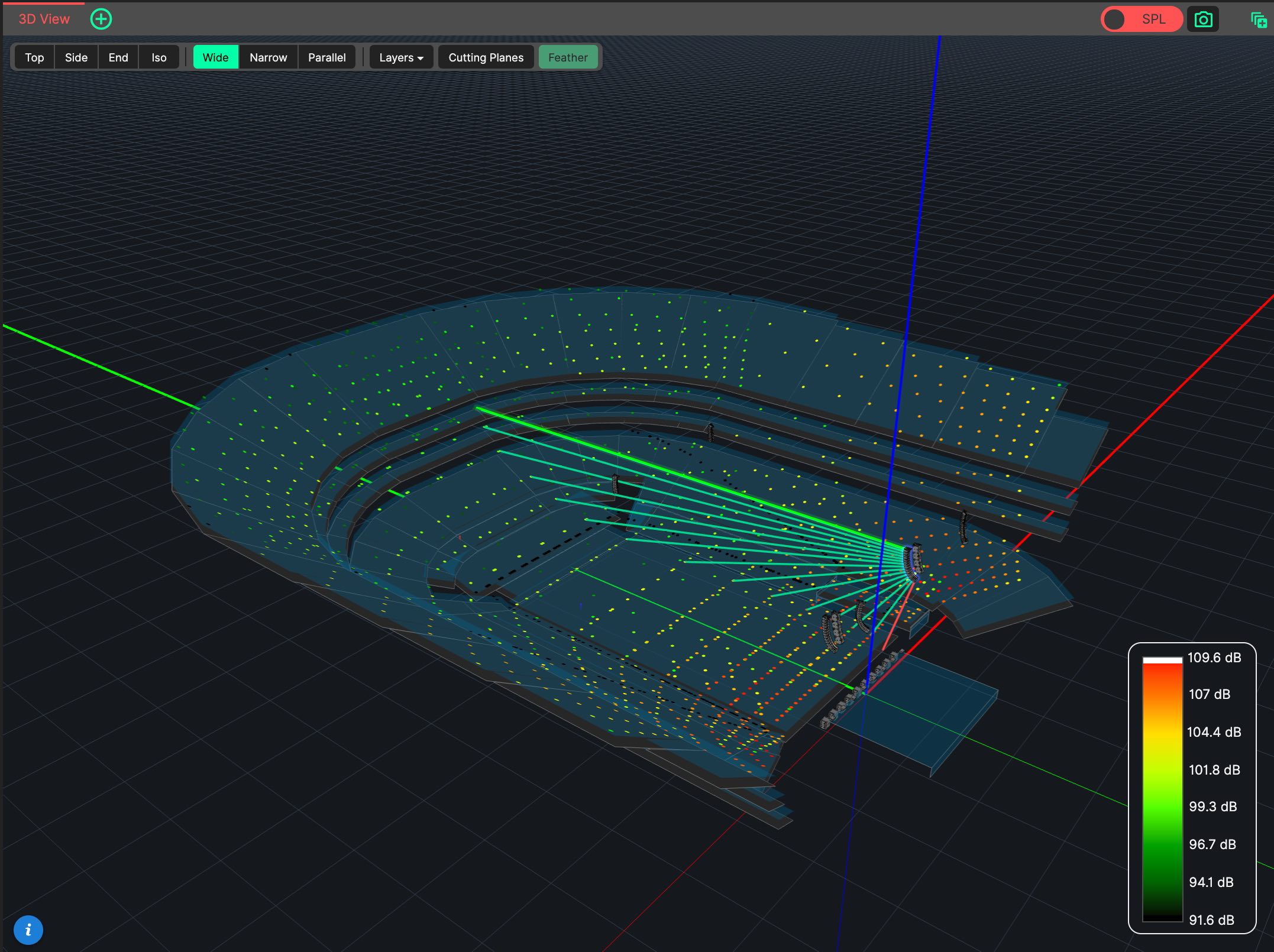

Aim Discs are per-cabinet aim points drawn on the audience. They replace the 3D-view throw lines of earlier versions of System Optimiser - array aiming is now performed in the Sideview, where each cabinet’s throw line can be dragged directly.

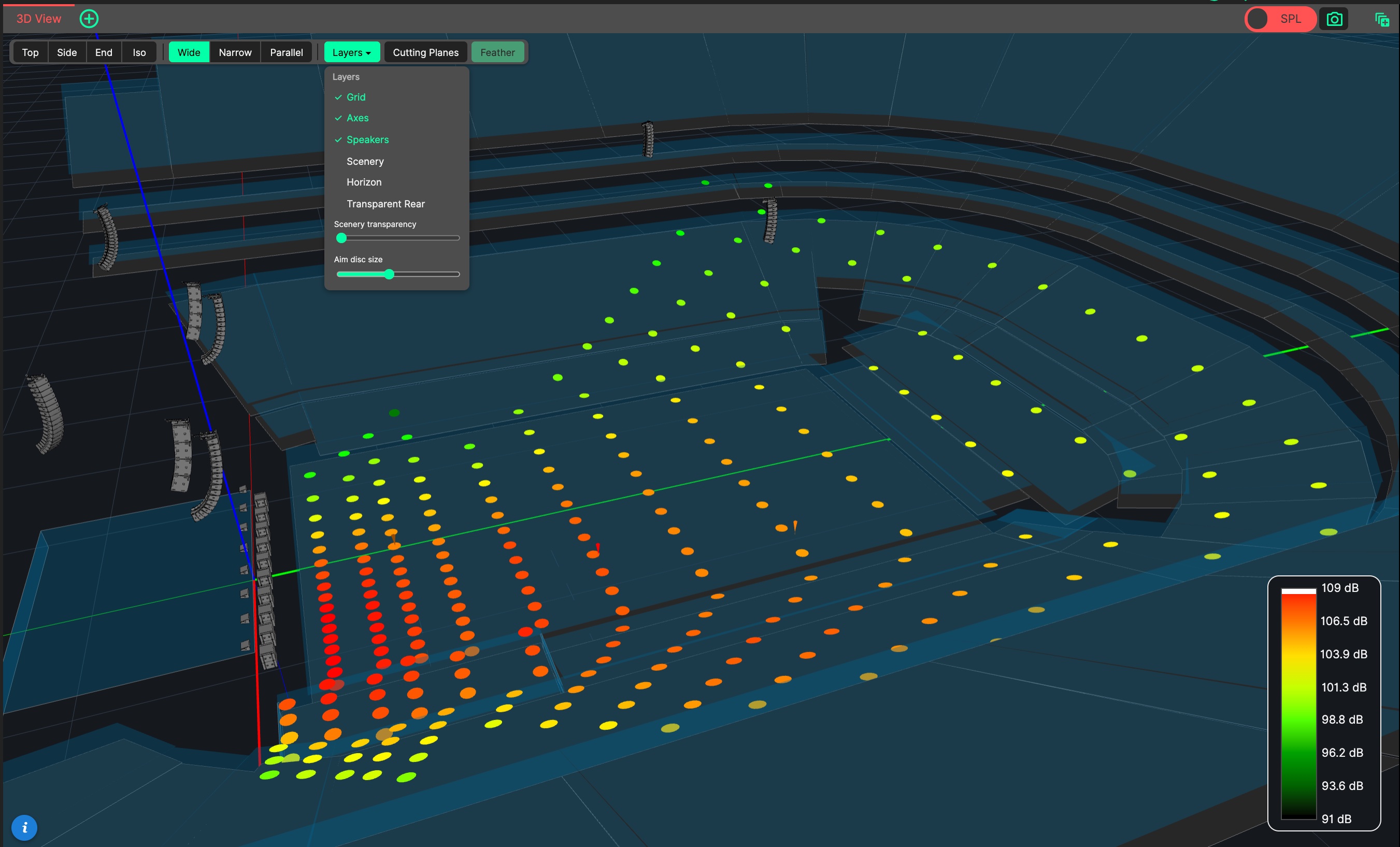

Aim Discs are shown automatically in the 3D View whenever the SPL heat map is off: each loudspeaker’s coverage is projected onto the audience and drawn as a disc, coloured by that box’s 1-10 kHz level on the same colour scale as the heat map. This gives an immediate visual answer to both where each cabinet is aimed and how loud it arrives there.

The disc size can be adjusted from the 3D view toolbar, under Layers → Aim disc size.

The Inspect tool can be used to click a disc and read its level.
