Source Manager (Panel)

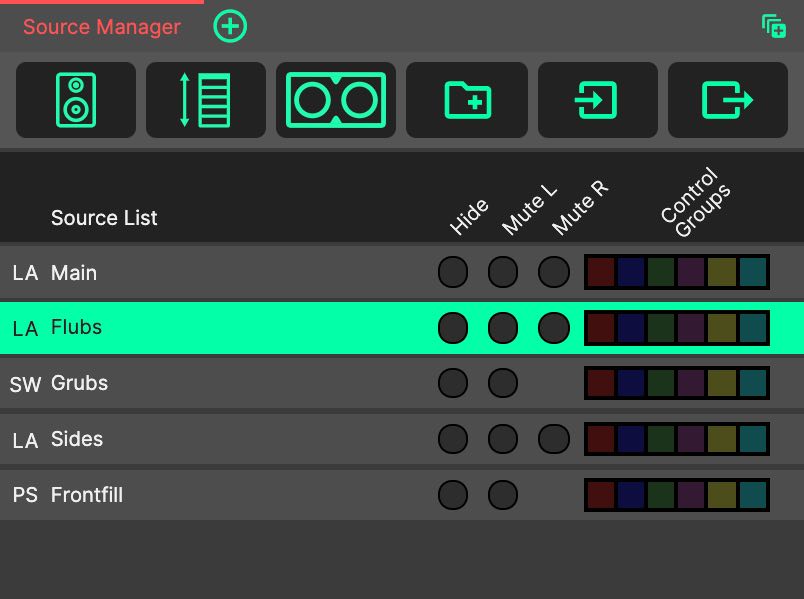

Source Manager Panel.

The Source Manager organises all loudspeaker sources within a system design file.

Creating Sources

Sources are created using the first three buttons in the Source Manager’s top bar. From left to right, these will create a new Horizontal Point Source Array, a new Standard Vertical Array, and a new Horizontal Subwoofer Array. Once created, the new sources join the bottom of the list.

See each source type page for information on how to manipulate them.

Source Groups

Source groups also appear in the Source Manager’s list, and are a way to manipulate many sources at once. For more information, see the page about Source Groups.

Source Properties

Sources (and Source Groups) can have attributes applied from the Source Manager by clicking the round, green toggle for each property. For information about the job roles of these properties, see the page about Source Properties.

As with all Panels, the Source Manager Panel can be resized and moved using Panel Drag & Drop, and ‘popped out’ into an additional System Optimiser window. The location of this Panel will be saved as part of the current View Mode.
