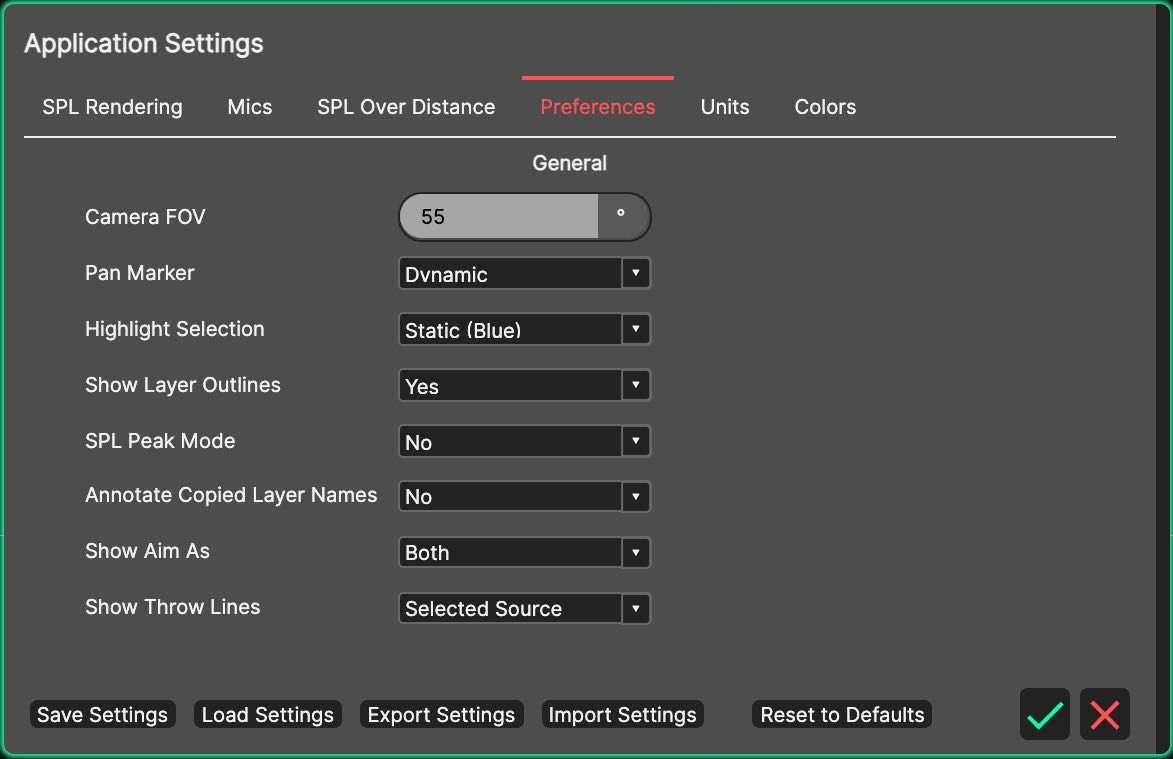

Preferences (Settings)

Throw Lines

Use the drop-down list to choose how Throw Lines are displayed.

• Always - This option enables Throw Lines for all sources in the 3D View.

• Never - This option disables Throw Lines for all sources in the 3D View.

• Selected - This option enables Throw Lines only for sources which are selected in the 3D View by clicking on them.

Pan Marker

The Pan Marker is used to display the point about which the 3D View is orbited.

• Disabled - the Pan Marker is never displayed.

• Static - the Pan Marker will be drawn in a static location when the camera is translated within the 3D View.

• Dynamic - the Pan Marker moves with the reference point, to highlight its location when the camera is translated within the 3D View.

Highlight Selection

The Highlight Selection drop-down list is used to choose the colour of a selected source in the 3D View.

Show Layer Outlines

Enables or disables the outlines of layers in the 3D View. It can be useful to turn these off when taking screenshots to make a system design more aesthetically pleasing.

SPL Peak Mode

By default, System Optimiser shows RMS sound pressure levels. If you need peak levels (i.e. the crest factor is added on top), you can turn on this option. CODA recommends to only use this option in rare exceptions.
